BSIDE ZT702S Handheld Oscilloscope Multimeter for Electricians

Specifications：
Hign-concerned Chemical:None
Operating Mode:Automatic/Manual
Measuring Capacitance Range:100mF
Operating Temperature:0 - 50 ℃
DIY Supplies:ELECTRICAL
Measuring Resistance Range:100MOhm
Origin:Mainland China
Model Number:ZT-702S
Brand Name:BSIDE
Dimensions:21.5*13*6.5cm
DC Current:10A
AC Current:10A
DC Voltage:1000V
AC Voltage:750V
Model Number::Multimeter Oscilloscope
Display Type::Digital display
Professional digital multimeter::Yes.
Handheld Oscilloscope::Yes.
Maximum display::9999 counts
True RMS:Yes.
Bandwidth::10MHz
Real-time sample rate::48MSa/s
DC Voltage test::Yes.
AC Voltage test::Yes.
DC/AC Current test::Yes.
Capacitance test::100mF
Resistance test::Yes.
Diode::Yes.
Temperature test::-20℃-1000℃
Frequency test::1000KHz
Continuity::Yes.
Product Introduction:

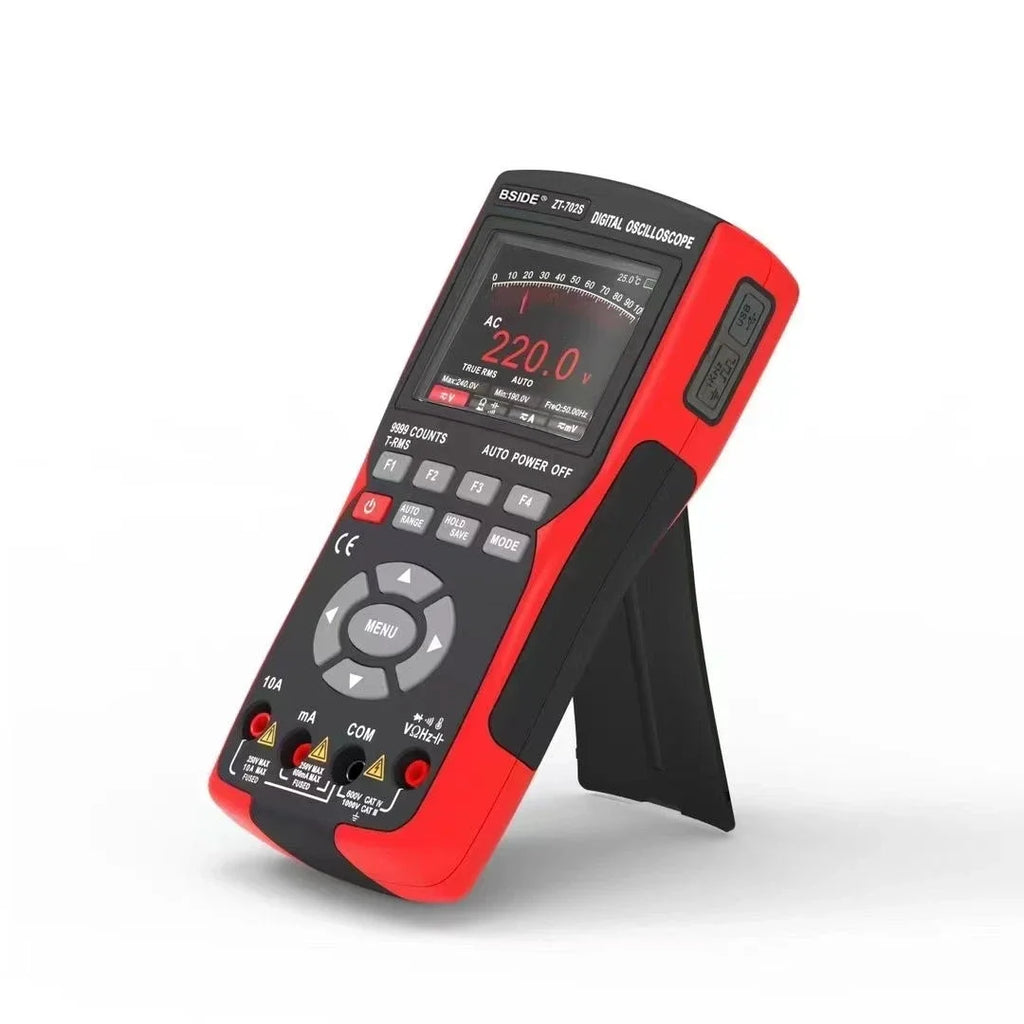

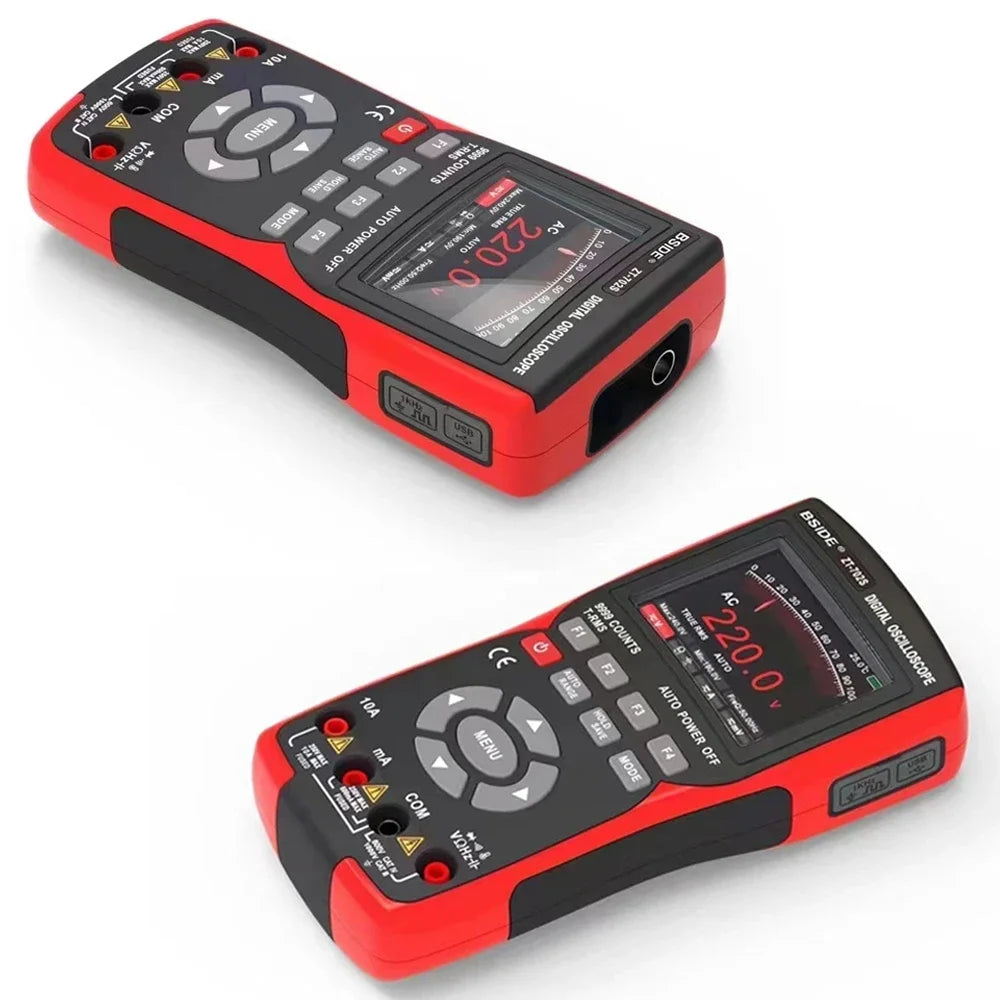

ZT702S is a fully functional, practical and cost-effective handheld Multimeter Oscilloscope newly launched by BSIDE.

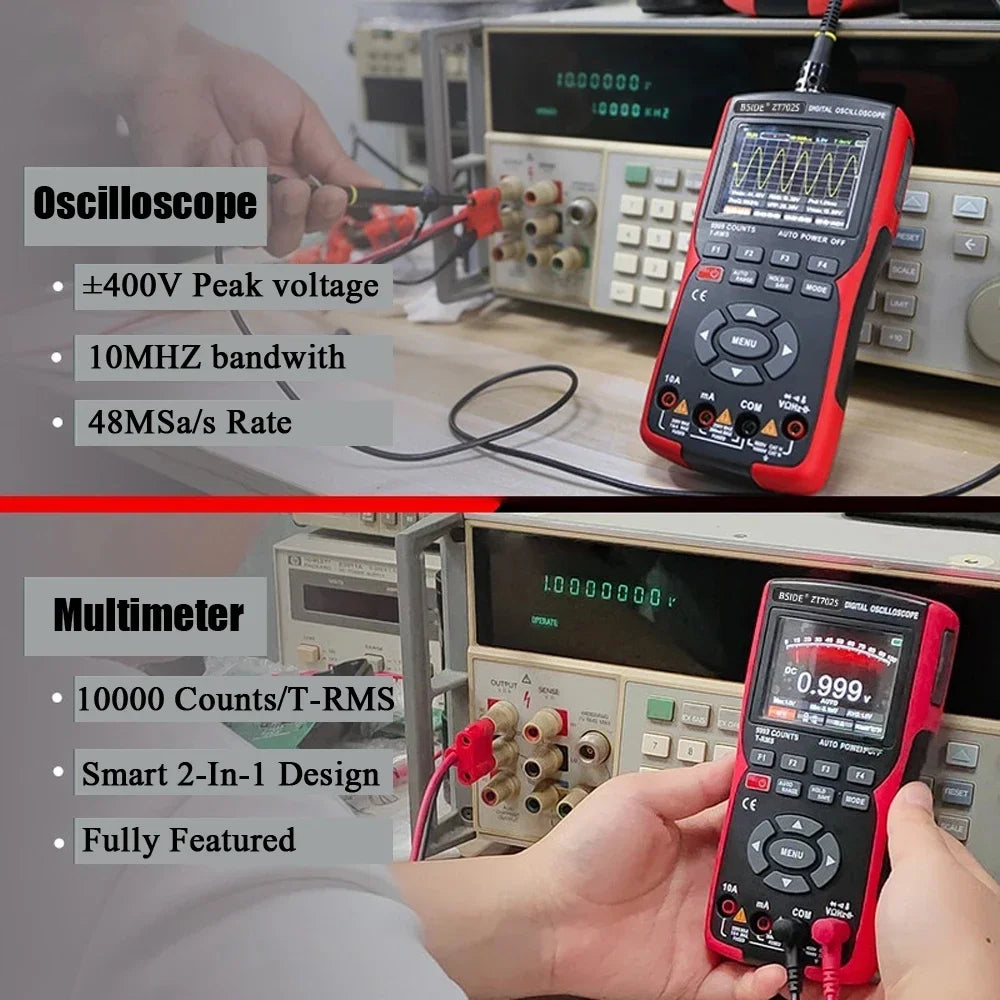

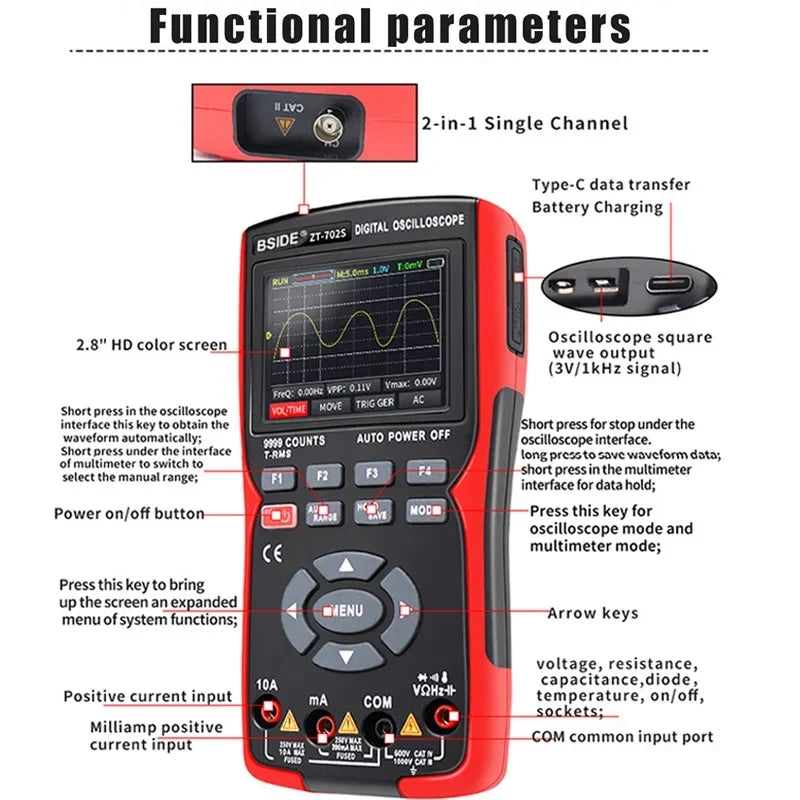

[Scope Mode]: 2.8" IPS color LCD oscilloscope, 10MHZ bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.
[Multimeter Mode]: 9999 counts, MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.
[Data Saved and Transfer]: The tested data can be saved and transfered.
[Color LCD Display]: Color LCD display greatly enhance the reading experience, very easy to read, even in bright sunlight or poor light.
[Rechargeable]: Come with a rechargeable 18650 battery & charging cable, you will never worry about power problem.
Specifications:
Display: 9999 counts
Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 400V (DC+AC peak)
Horizontal SEC range: 50ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(0.5%+3)
AC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(1.0%+3)
DC current:
9999μA/99.99mA 1μA/0.01mA ±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3)
AC current:
9999μA/99.99mA 1μA/0.01mA ±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3)
Resistance:
99.99Ω0.01Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ ±(0.5%+3);
9.999MΩ 0.001MΩ±(1.5%+3); 99.99MΩ 0.01MΩ ±(3.0%+5)
Capacitance: 9.999nF 0.001nF ±(5.0%+20);
99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF ±(2.0%+5);
9.999mF 0.001mF ±(5.0%+5)
Frequency:
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2) Temperature: -20℃-1000℃/-4℉-1832℉ ±(2.5%+5)
Diode: Yes
Continuity: Yes
Power: 18650 battery

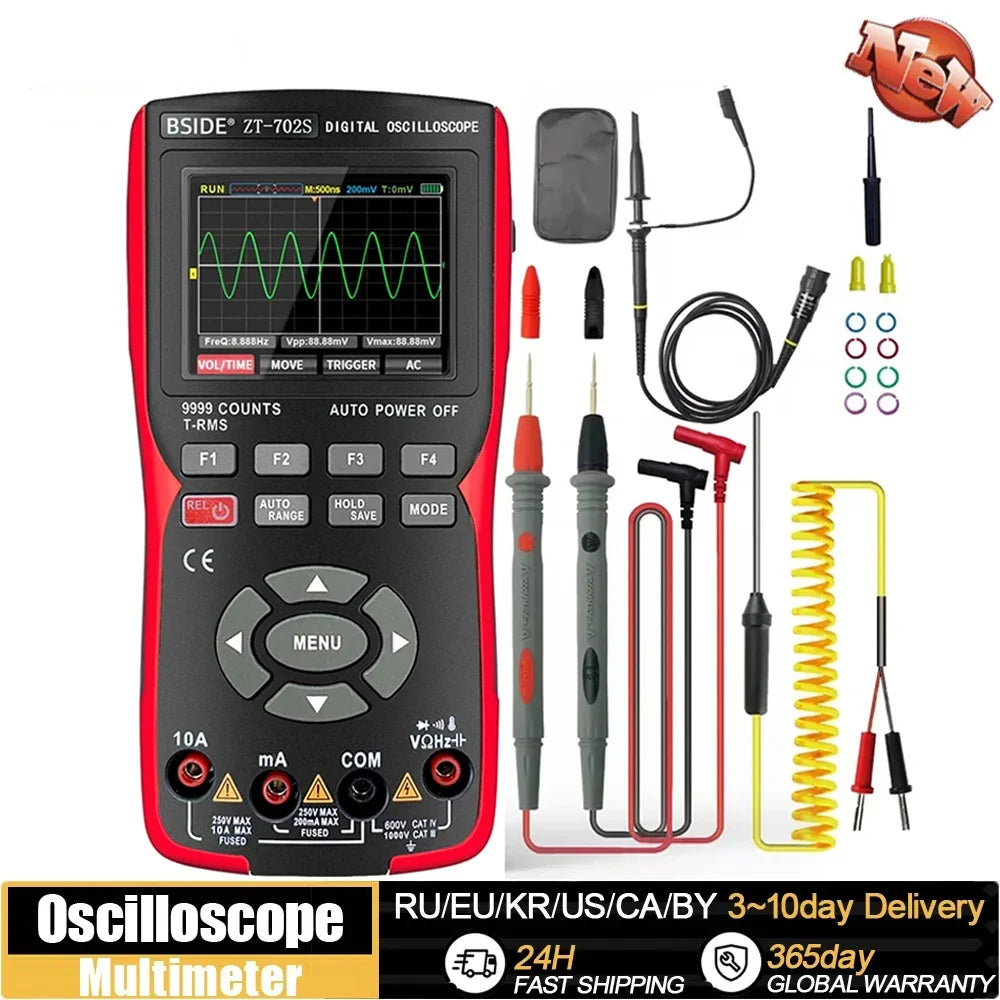

Package Includes:
1 x Oscilloscope
1 x Test Leads
1 x Oscilloscope probe
1 x Thermocouple
1 x Carrying Case
1 x Screwdriver
1 x User Manual
