BSIDE ACM91 Clamp Meter True RMS with 1mA Precision & Temp Test

Specifications
Weight:161g
Dimensions:175 x 5.5 x 35 mm
Operating Temperature:0-40C
Measuring Inductance Range:N/A
Measuring Capacitance Range:600UF/6000UF (ACM91)
Measuring Resistance Range:600/6k/60k/600k/6M/60M ohm
Measuring Voltage Range:600V (AC/DC)
Measuring Current Range:ACM91/92 (DC/AC 100A), ACM81 (AC 200A)
Display Type:Analog and Digital
Model Number:BSIDE ACM81 ACM92 ACM91 Digital Clamp Meter
DIY Supplies:ELECTRICAL
Brand Name:BSIDE
Certification:CE,FCC,RoHS
BSIDE ACM81/92/91 True RMS High-Precision 1mA Digital Clamp Meter Ammeter Pliers DC AC Multimeter Car Repair Current Voltage Temperature Capacitor Ohm Hz Tester
Feature:
●Ultra-portable tools for advance electricians. The DC AC current can be tested quickly, accurately and safely without damaging the insulation on the line surface.
●The ACM81/92/91 series of clamp meters have True-RMS characteristics and 1 mA Resolution . HasDual impedance test voltage.Can effectively meet the needs of professionals.
●The BSIDE series of clamp meters is equipped with different test functions. Two colors (Blue and Black). Meet the needs of different customers at a more affordable price.

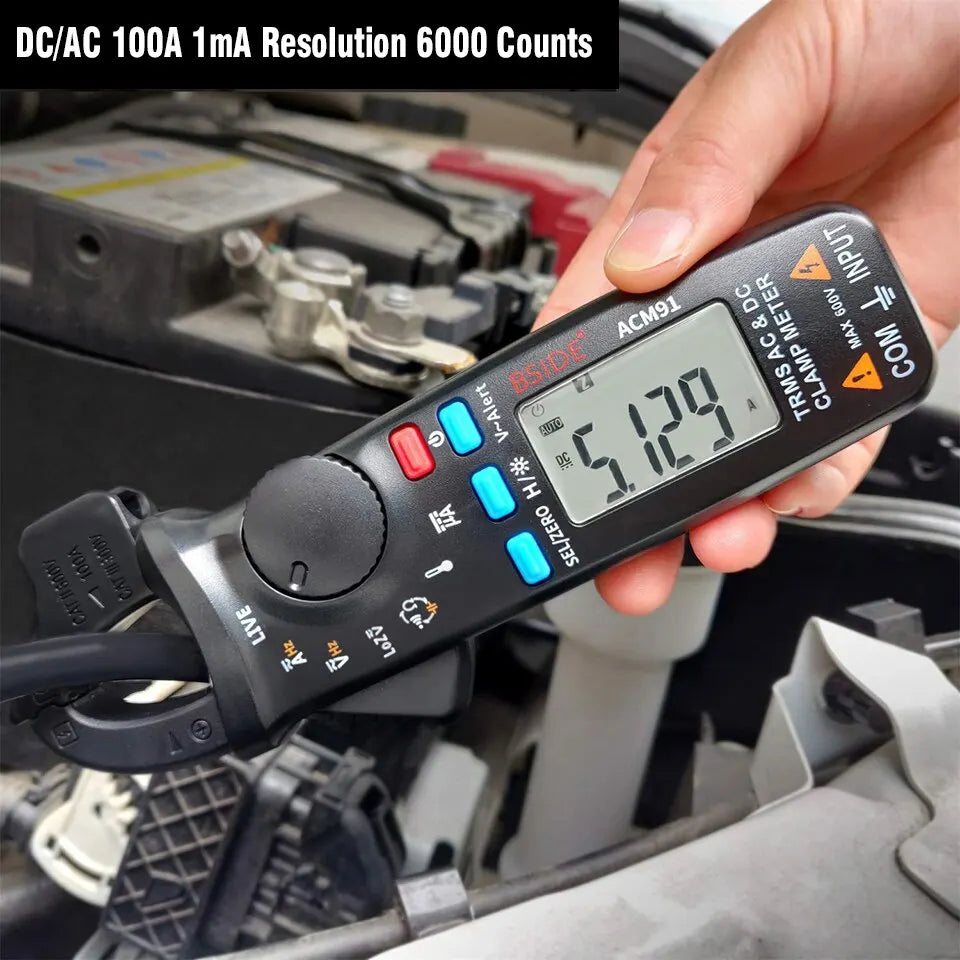

●Maximum display: 6000Counts. Compared with similar products,The ACM92/91 still has 1mA accuracy for a larger measurement range (0~6A).
●The Automatic-Range operation mode can effectively avoid burning the table, and the operation is safer and faster!
Order notice:
● ACM81 productonly support testing AC current .
●The ACM91 and ACM92 product supports testing of DC AC current .
ACM81/82/91 parameter comparison:
Thank you for your trust and evaluation!
Product Advantages:
More Choices:
●The BSIDE ACM series of clamp meters is equipped with different test functions.Two colors (Blue and Black).Meet the needs of different customers at a more affordable price.
More Accurate:
●BSIDE ACM series products have True-RMS characteristics (1mA resolution).Can effectivelymeet the needs of professionals.
●Maximum display: 6000Counts.Compared with similar products,The ACM92/91 still has 1mA accuracyfor a larger measurement range( 0~6A ).
●The ACM92/91 clamp meter has a “Zero Clear Function” (ZERO). Used before the DC current test, Caneffectively reduce the test error.
●Dual impedance test voltage (Conventional voltage test and Low Impedance voltage test), It can meetthe voltage test requirements of professionals.
More Test Features:

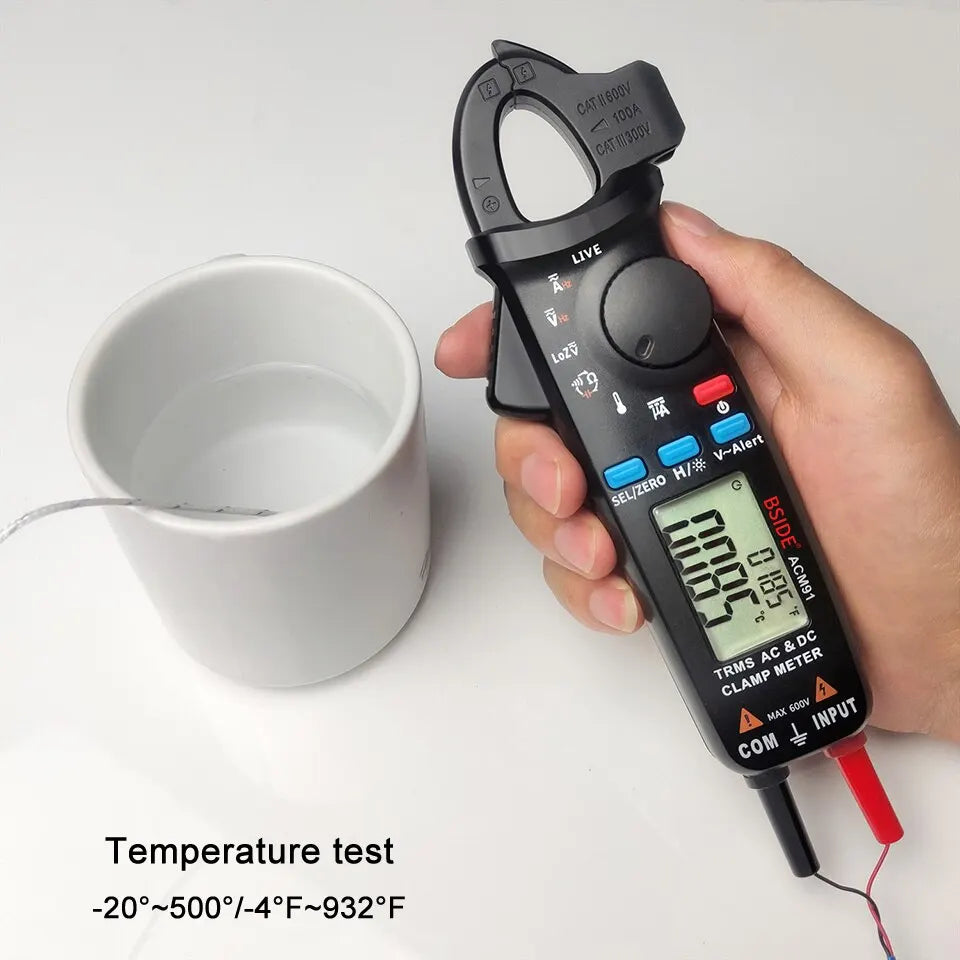

●This series of products has DC/AC Voltage, AC Current, DC Current,Temperature, Frequency, Clamp on frequency function, Capacitance,DC microampere (minumum 0.1μA by terminals), Resistance, Diode, Continuity,Low Impedance Voltage,LIVE wire check, V-Alert( NCV ) test function, with such a small size it meets the rules of the state has made the most perfectfunctions.
More Application Scenarios:
●This product has excellent LoZ low-impedance test function and DC microampere detection function, which is very suitable for the maintenance industry.
Optimize the efficiency of the test:
● Support one-handed switching of all test functions(complete in 1.5 seconds), making operation more convenient and quick.

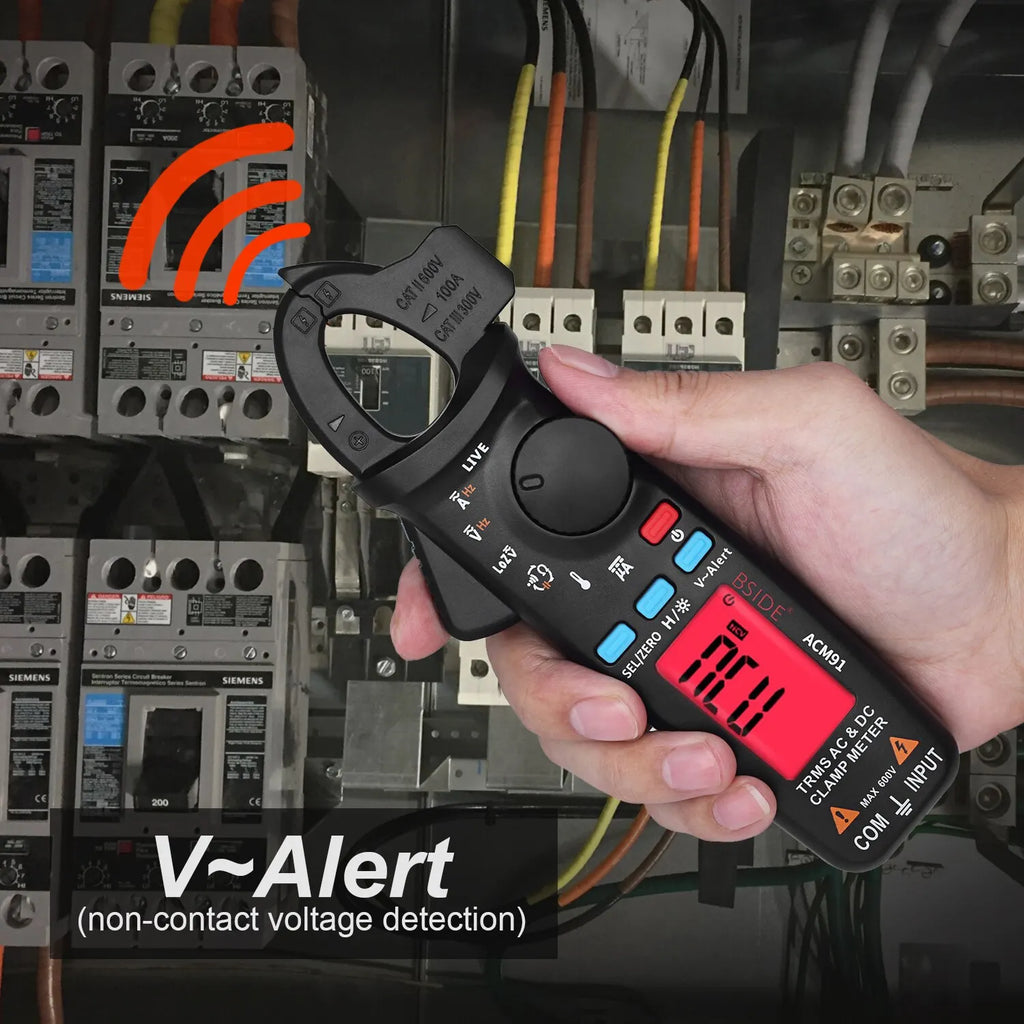

● LIVE wire check function and V ~ alert function conveniently quickly identify mains connection status.
● Can display voltage or current and frequency at the same time.Quick and easy to complete testing.
Optimize product usage and test experience:
● There are twocolors, Blue and Black. There is always one that you like.
● Streamlined design for more comfortable operation.
● LCD display(1.72 inches) with backlight for clear reading.
● Has Data hold, Low battery indication functions, Auto power off features, Added back hooks.
● Jaw opening size 20mm.
● The body size of the product is -17.5CM*5.5CM*3.5CM, which is more convenient to use and carry.

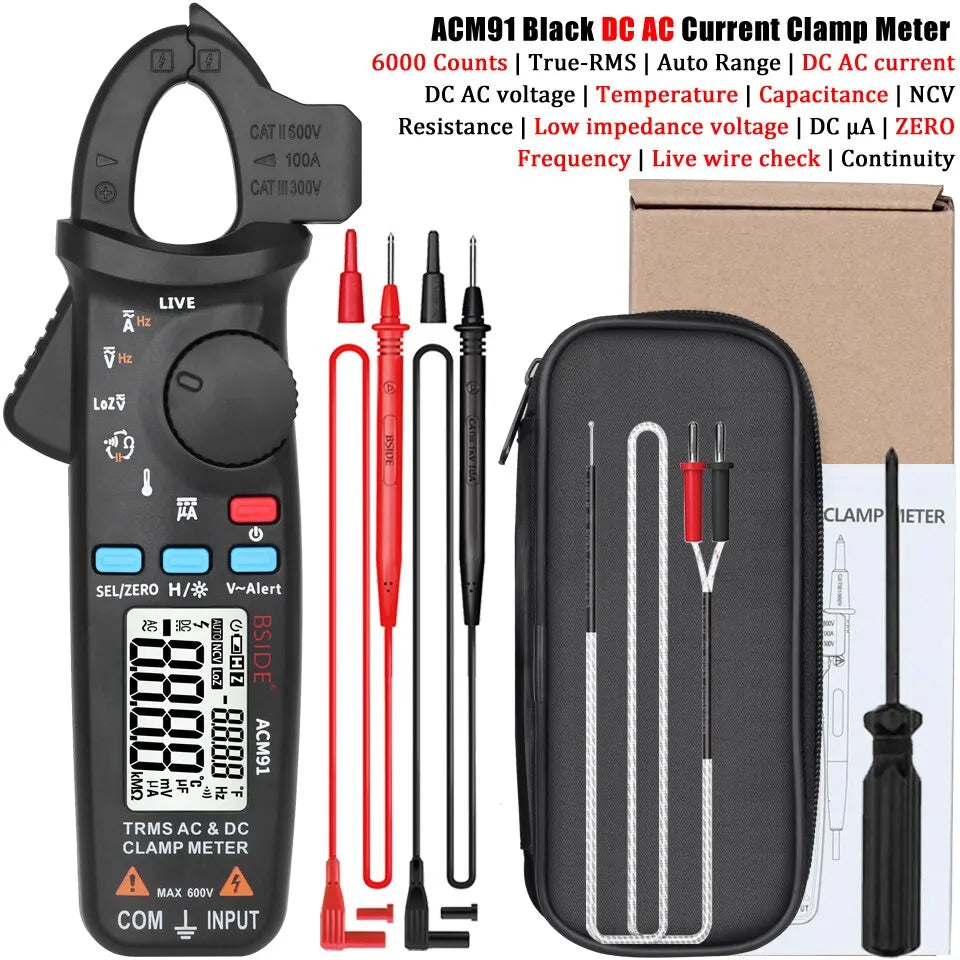

Package Includes:
●1 x Digital Clamp Meter ●1 x Test Leads
● 1 x Thermocouple ● 1 x Manual User
● 1 x carrying case ● 1 x gift (Screwdrive)
